CANopen板卡PCI接口CAN-PCI/331支持单通道或双通道

CAN-PCI/331

1 or 2 Channel PCI-CAN Interface (Layer 2, CANopen? or J1939)

CAN-PCI/331

1 或 2 通道 PCI-CAN 接口（支持CANopen? 或 J1939）

CANopen板卡PCI接口CAN-PCI/331支持单通道或双通道，支持J1939协议，电气隔离，支持实时操作系统Linux，QNX4，QNX6/7，RTX64，VxWorks等，用于快速设置和诊断 CAN 网络的免费 CAN 工具，支持CSV，便于二次开发的NTCAN API

1 or 2 channel CAN interface for PCs, available as high-speed or low-speed CAN version

Up to two high-speed CAN interfaces according to *** 11898-2, galvanically ***lated

1x CAN low-speed according to *** 11519-2 available

Powerful 68331 microcontroller offloads the host CPU

用于 PC 的 1 或 2 通道 CAN 接口，提供高速或低速 CAN 版本

1.最多两个符合 *** 11898-2 标准的高速 CAN 接口，电隔离

2.提供 1 个符合 *** 11519-2 标准的 CAN 低速

3.强大的 68331 微控制器卸载主机 CPU

实时操作系统支持和高层协议支持Real-time operating systems and higher layer protocols CANopen and J1939

Software drivers for Windows?, Linux?, QNX?, RTX and VxWorks?.

CANopen and J1939 protocol libraries available

实时操作系统和更高层协议 CANopen 和 J1939

适用于 Windows?、Linux?、QNX?、RTX 和 VxWorks? 的软件驱动程序。

提供 CANopen 和 J1939 协议库

Established product, also proven in medical applications 成熟的产品，也在医疗应用中得到证明

Powerful CAN interface for PCs

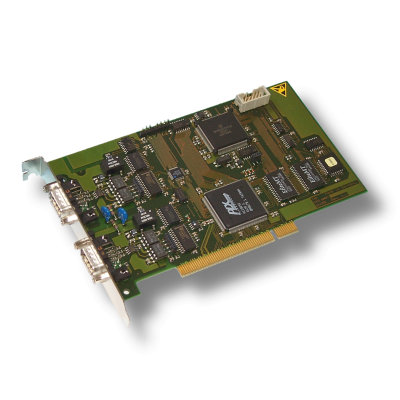

The CAN-PCI/331 is a PC plug-in card for the PCI bus. It works with a microcontroller of the type 68331, which takes over the local data management of the CAN data. The CAN data are temporarily stored in the local SRAM. Data security and consistency are guaranteed up to 1 Mbit/s.

适用于 PC 的强大 CAN 接口

CAN-PCI/331 是用于 PCI 总线的 PC 插卡。 它与 68331 类型的微控制器一起工作，该微控制器接管 CAN 数据的本地数据管理。 CAN 数据临时存储在本地 SRAM 中。 数据安全性和一致性***高达 1 Mbit/s。

CAN interface

The *** 11898 compatible CAN interface allows a maximum data transfer rate of 1 MBit/s. The CAN interface is galvanically ***lated from the other voltage potentials.

Free drivers for Windows and Linux included

The product is offered with drivers for Windows and Linux, which can be downloaded free of charge.

In addition to these operating systems, various other (real-time) operating systems are also supported. Detailed information can be found in the description of our order items and, if applicable, in the accessories at the bottom of this page. For more detailed information about the availability of drivers for your operating system, please contact our sales team.

CAN接口与 *** 11898 兼容的 CAN 接口允许数据传输速率为 1 MBit/s。 CAN 接口与其他电压电位电隔离。

包括适用于 Windows 和 Linux 的免费驱动程序

该产品提供适用于 Windows 和 Linux 的驱动程序，可免费下载。

除了这些操作系统之外，还支持各种其他（实时）操作系统。 详细信息可以在我们的订单商品描述中找到，如果适用，可以在本页底部的附件中找到。 有关适用于您的操作系统的驱动程序的更多详细信息，请联系我们的销售团队。

Free CAN tools for fast setup and diagnosis of CAN networks

Our CAN tools for Windows, which are available free of charge in the CAN SDK, significantly support the user in quickly setting up and easily diagnosing CAN, CAN FD and CANopen networks. The possibility of data logging helps the user to record the data traffic for later analysis and to process it further as a CSV file.

用于快速设置和诊断 CAN 网络的免费 CAN 工具

我们在 CAN SDK 中免费提供的适用于 Windows 的 CAN 工具***支持用户快速设置和轻松诊断 CAN、CAN FD 和 CANopen 网络。 数据记录的可能性有助于用户记录数据流量以供以后分析并将其作为 CSV 文件进一步处理。

NTCAN API and available software stacks

The NTCAN API is a cross-platform software communication interface for CAN hardware. The well-structured API allows easy integration into any application. The functionality and the versatility of the implementation provide all necessary mechanisms to control, configure and monitor CAN networks. In addition to the free version for Windows and Linux, the NTCAN API is also available for many real-time operating systems such as QNX?, RTX? or VxWorks? for a license fee.

Many sophisticated functions make the API ideally suited for use in connection with higher CAN based protocols. For many common protocols corresponding implementations are already available from esd. These higher layer protocols for Classical CAN, which are available for numerous operating systems, include:

CANopen Master and Slave Stack

J1939 Software Stack

NTCAN API 和可用的软件堆栈

NTCAN API 是 CAN 硬件的跨平台软件通信接口。 结构良好的 API 允许轻松集成到任何应用程序中。 实现的功能性和多功能性提供了控制、配置和监控 CAN 网络的所有必要机制。 除了适用于 Windows 和 Linux 的免费版本外，NTCAN API 还可用于许多实时操作系统，例如 QNX?、RTX? 或 VxWorks?，但需支付许可费。

许多复杂的功能使 API 非常适合与更高的基于 CAN 的协议结合使用。 对于许多常见的协议，esd 已经提供了相应的实现。 这些适用于众多操作系统的*** CAN 更高层协议包括：

CANopen 主从协议栈

J1939 软件堆栈

技术参数：

Number: C.2020.04

Intelligent PCI to CAN interface board, MC 68331 CAN kernel using PLX9050 PCI bridge, 2 CAN 2.0A interfaces *** 11898-1, physical layer according to *** 11898-2, electrically ***lated; data rate up to 1 Mbit/s, integrated firmware, Drivers, tools and documentation for Windows & Linux on CD-ROM

Features:

galvanically ***lated

Interfaces:

CAN

PCI

Form factor: PCI

Supported OS:

Linux

QNX4

QNX6/7

RTX64

VxWorks

Windows 7/8/10/11

Windows CE.NET

Protocols:

CAN-Layer 2

CANopen

J1939

HS Code: 85176200
