| 品牌：peak-system | 型号：PCAN-USB Pro FD | 加工定制：是 |
| 用途：can fd协议调试 | 产品认证：ce |

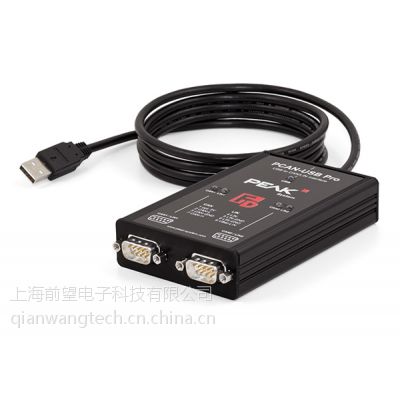

PCAN-USB Pro FD，专业的can fd接口卡德国peak system
The PCAN-USB Pro FD adapter enables the connection of CAN FD and LIN networks to a computer via USB. Two field busses can be connected at the same time, up to four with appropriate adapter cables (2 x CAN FD, 2 x LIN). Each CAN FD channel is separately ***lated against USB and LIN with a maximum of 500 Volts. Its robust aluminum casing makes the PCAN-USB Pro FD adapter suitable for mobile applications.
The new CAN FD standard (CAN with Flexible Data Rate) is primarily characterized by higher bandwidth for data transfer. The maximum of 64 data bytes per CAN FD frame (instead of 8 so far) can be transmitted with bit rates up to 12 Mbit/s. CAN FD is downward-compatible to the CAN 2.0 A/B standard, thus CAN FD nodes can be used in existing CAN networks. However, in this case the CAN FD extensions are not applicable.
Adapter for High-speed USB 2.0 (compatible to USB 1.1 and USB 3.0)
Transmitting and receiving of CAN FD and LIN messages using 2 D-Sub connections (both with pin assignment for the CAN FD and LIN bus)
Time stamp resolution 1 μs
5-Volt supply at the D-Sub connector can be activated through a solder jumper, e.g. for external bus converter
Voltage supply via USB
Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
Complies with CAN specifications 2.0 A/B and FD 1.0
CAN FD bit rates for the data field (64 bytes max.) from 40 kbit/s up to 12 Mbit/s
CAN bit rates from 40 kbit/s up to 1 Mbit/s
FPGA implementation of the CAN FD controller
NXP TJA1044GT CAN transceiver
Each CAN FD channel is separately opto-decoupled against USB and LIN up to 500 V
CAN termination can be activated through a solder jumper
Measurement of bus load including error frames and overload frames
Induced error generation for incoming and outgoing CAN messages
Bit rates from 1 kbit/s up to 20 kbit/s
TJA1021/20 LIN transceiver
Both LIN channels (common ground) are optodecoupled against USB and CAN FD
Can be used as a LIN master or slave (1 ms master task resolution)
Automatic bit rate, frame length, and checksum type recognition
Autonomous scheduler with support for unconditional, event, and sporadic frames
Hardware can work through a schedule table (up to 8 schedule tables can be configured with a total of 256 slots)
| Pin | Pin assignment |
|---|---|
| 1 | Not connected / optional +5V |
| 2 | CAN-L |
| 3 | CAN-GND |
| 4 | LIN |
| 5 | LIN-GND |
| 6 | LIN-GND |
| 7 | CAN-H |
| 8 | Not connected |
| 9 | VBAT |
